Specifications
DEEP Models
W4H-12-450
W4H-3-950

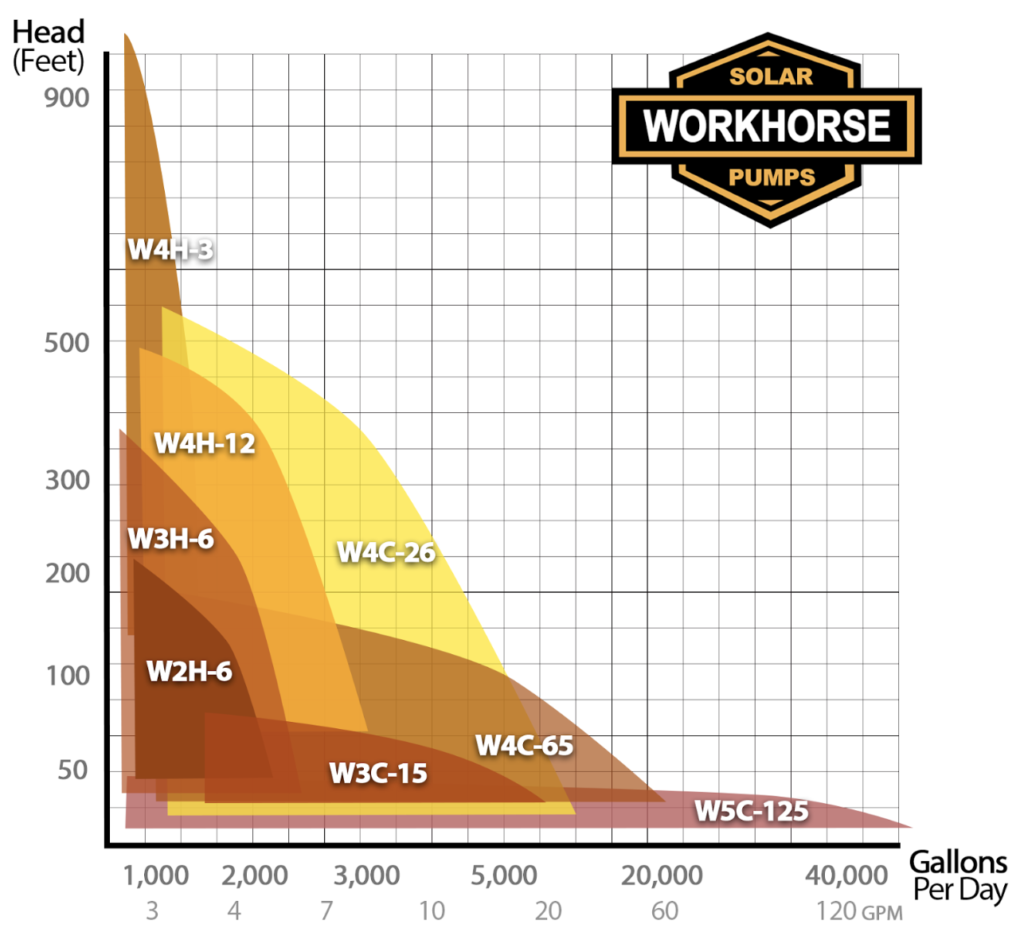

Up to 950ft of head with 400w to 1600w of Solar
W3H and W2H Spring 2020
VOLUME Models
W4C-26-600
W4C-65-280
Up to 125 GPM with 400 to 1600 Watts of Solar
W3C Coming Spring 2020

Power: 400w – 2000w

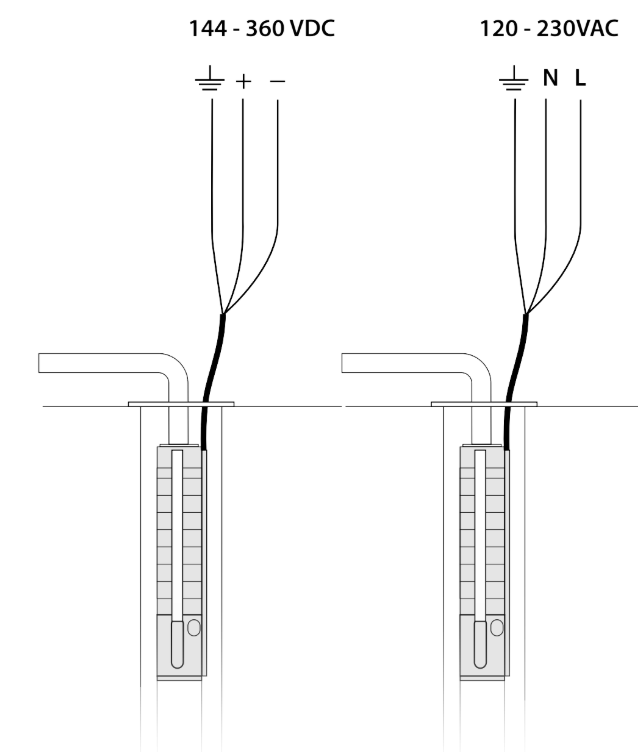

Input Voltage: DC 60 – 360VDC, AC 120 – 230VAC 50/60Hz
Max Input Voltage from solar panels: 450V
Current Range: 1.5 – 8A
Speed Range: 500 – 4500RPM
Protection Class: IP 68

Detailed Specs & Curves (pdf)


Pump Features

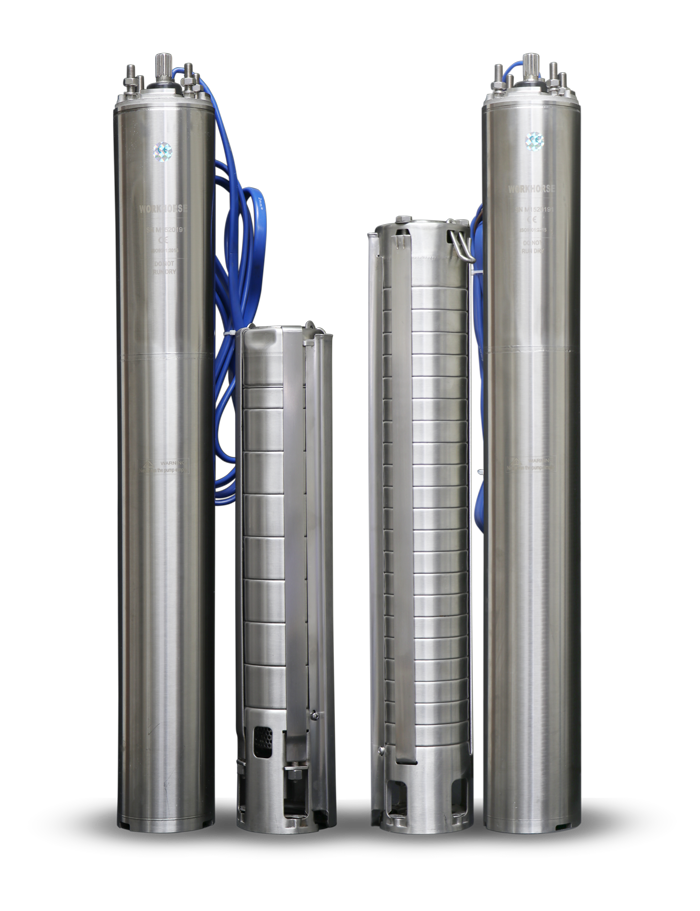

- Permanent magnet DC brushless motor

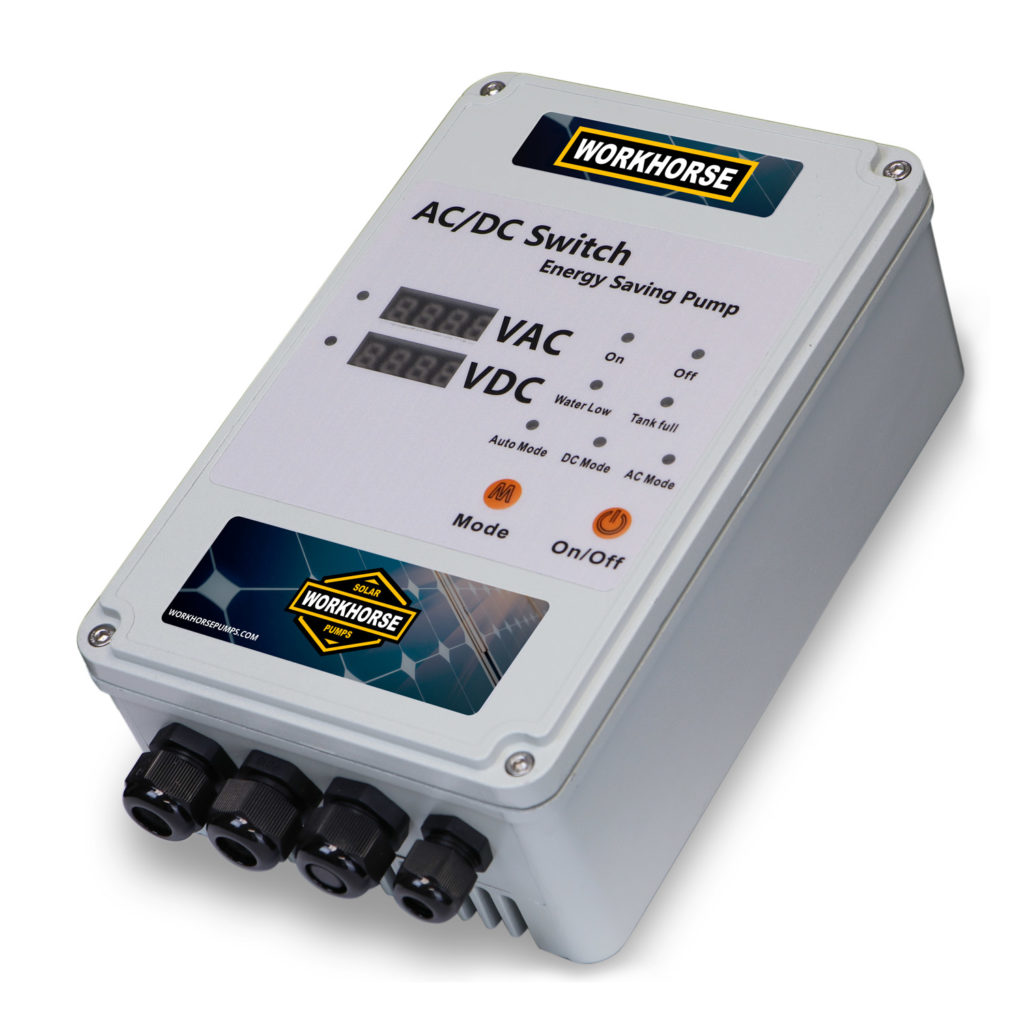

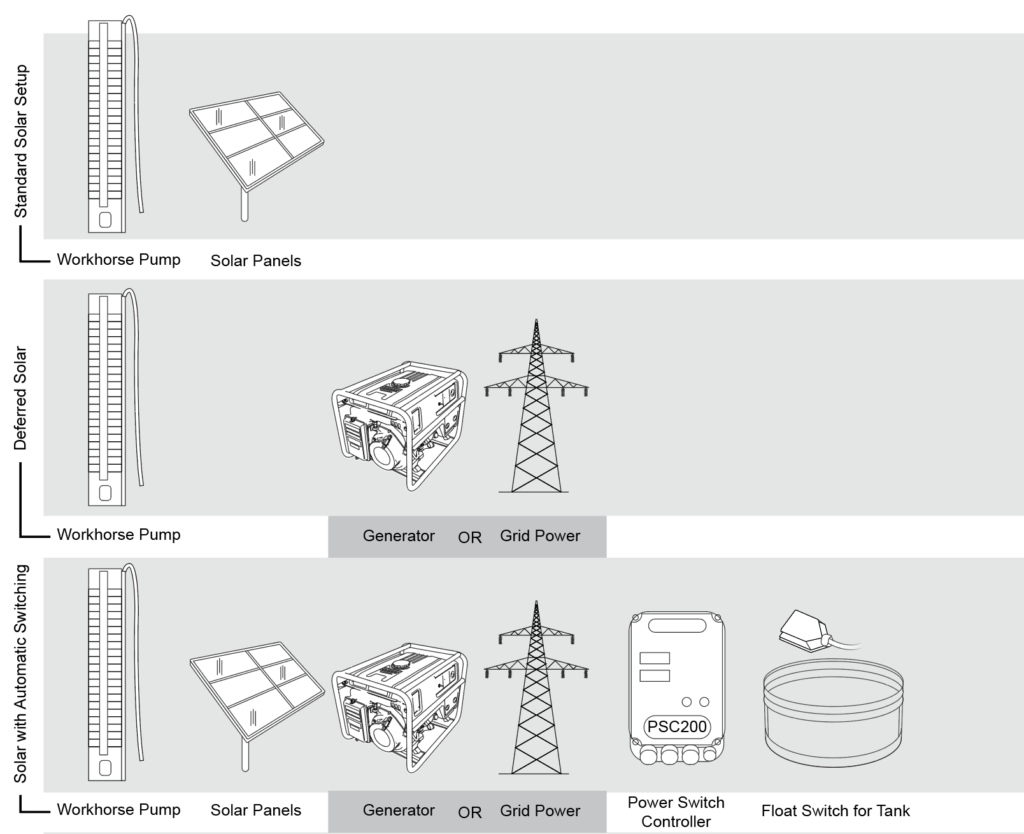

- AC/DC Switching Controller Optional
- Internal controller with MPPT function
- 304 Stainless Steel pump and motor
- Laser Welded
- Water-lubricated bearings
- Water-filled Encapsulated motor
- Soft start and soft stop to extend life
- Built-in Run-Dry protection. Variable Load protection
- Variable Current & Voltage protection
- Most Comprehensive 2 Year Warranty

Product Overview (pdf)
